Elbee – Technical Parameters

Category: LE*
Maximum speed: 80 km/h; 49 mph
Length: 2,479 m; 8.13 ft
Width: 1,330 m; 4.36 ft
Heigth: 1,725 m; 5.65 ft
Interior space width: 770 mm; 30.3"
Inteior space height: 1 420 mm; 55.9"
Weight: 400 kg; 881.8 lb
Engine: petrol
Engine size: 300 ccm; 18.3 CID
Maximum output: 12.5 kW
Average fuel consumption: 4.5 l per 100 km; 52.27 miles per US gallon

* heavy quad


Configuration Options

Elbee is adjusted to the customer’s disability so that it could be driven by almost anyone. A number of unique and especially beneficial solutions for your safety and comfort are standard. While developing the Elbee we focused not only on various technical solutions, but also on aesthetic character which may be individually adjusted. Look at the list of design solutions in each area.

Security

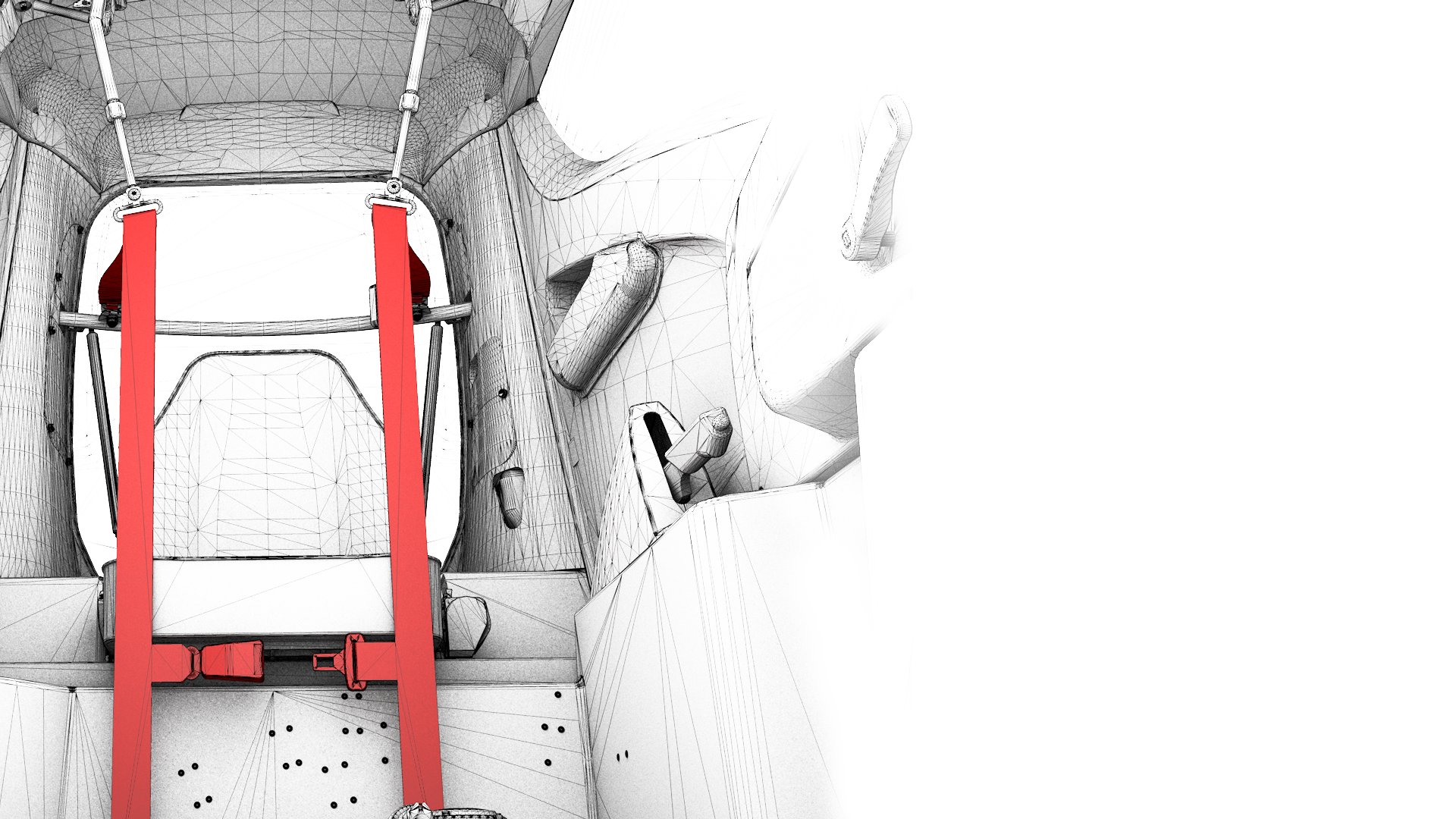

Four-point safety belts

Four-point safety belts

Four-point safety belts allow for firm and secure fit in your wheelchair.

Wheelchair anchoring

Wheelchair anchoring

Any type of mechanical and electric wheelchair can be docked.

Emergency door opening

Emergency door opening

A unique automatic emergency opening of the front doors is prepared for contingencies.

Headlights

Headlights

Thanks to modern bi-halogen headlights you will see and will be seen well.

Show all

Control

Remote controlled front door

Remote controlled front door

Remote control for opening the front doors and ramps for maximum comfort.

Extended length ramp

Extended length ramp

Doubled length of ramps allows for even easier access into the vehicle.

Steering wheel

Steering wheel

A steering wheel with optional equipment is ideal for people with limited mobility in the upper extremities.

Handlebars

Handlebars

Handlebars, also used in a motorcycle, are an ideal solution for paraplegics.

Power steering

Power steering

Power steering is an essential complement for people with limited mobility in the upper extremities. It may be appreciated by paraplegics as well.

Variator

Variator

A variator is functionally similar to an automatic transmission - only D, N and R.

Handbrake

Handbrake

We adjust the handbrake so that it can be used manually by people with limited mobility in the upper extremities.

Switches

Switches

The size of control buttons is designed for maximum ease of use even with a higher degree of disability.

Electric parking brake

Electric parking brake

The parking brake can be safely and easily applied on the touch of one button.

Gear shifting

Gear shifting

Thanks to an electric gearshift the gears are easily shifted at the touch of a button.

Combined accelerator and brake lever

Combined accelerator and brake lever

A unique 3 in 1 push/pull lever combines the function of braking, accelerating and an electric parking brake.

Manually opened side windows

Manually opened side windows

The side windows can easily be handled even with a higher degree of disability.

Right/left control

Right/left control

We have also thought of the possibility of a single strong hand - the controls are positioned and adapted to the suitable side.

Electric side windows

Electric side windows

The side windows can be opened or closed on a touch of a button.

Show all

Accessories

Electric opening of the rear window

Electric opening of the rear window

A remote controlled rear window is a simple solution for those who cannot open it manually.

Storing capabilities

Storing capabilities

Nets in several places of the interior makes storage of luggage and smaller items very easy.

Holders and pockets in the interior

Holders and pockets in the interior

Additional holders and pockets inside Elbee allow for comfortable luggage storage.

Foldable passenger seat

Foldable passenger seat

The foldable passenger seat behind the driver is designed to save trunk space so as not to diminish transport capability.

Rear view camera

Rear view camera

A rear view camera is an appreciated accessory to help to park, not only for people with a limited mobility of the cervical spine.

Homing lasers

Homing lasers

For greater comfort and even easier access Elbee can be equipped with exterior guidance lasers.

Radio

Radio

You can equip your Elbee with a radio that will make your shorter or longer trips even more joyful.

GPS navigation

GPS navigation

Nowadays a GPS navigation system is a must-have when travelling. Make sure you always reach the desired destination.

Show all

Appearance

Exterior design

Exterior design

The owner of the Elbee can choose and design the colour, patterns, motifs and the finish according to their wishes. There are no limits!

The interior

The interior

Many features of the interior such as colour, fabrics and much more can be tailored to the customers’ wishes and tastes.

Show all
